1N4007 1A 1000V General Purpose Rectifier Diode

Product Overview

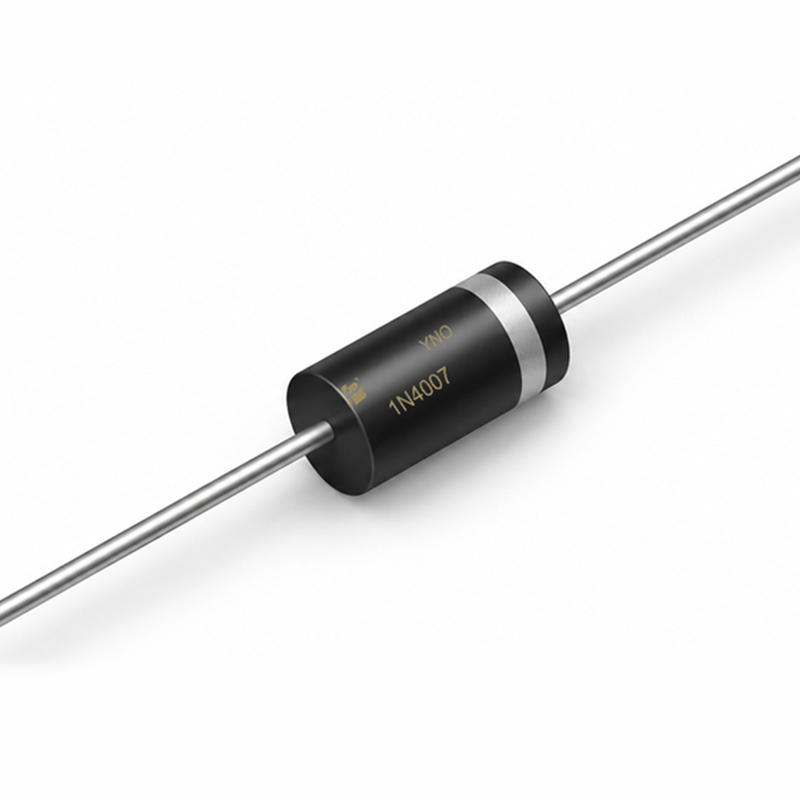

POWERSi 1N4007 is a 1A, 1000V general-purpose silicon rectifier diode in a DO-41 axial-lead package. It is designed for general rectification circuits where a 1000V repetitive peak reverse-voltage rating and a widely used axial package are required.

The band marking identifies the cathode, so polarity should be verified during circuit assembly and replacement evaluation.



Key Specifications

Parameter	Specification	Test Conditions / Notes
Part Number	1N4007
Device Type	General-Purpose Silicon Rectifier Diode
Repetitive Peak Reverse Voltage (VRRM)	1000 V
Average Forward Current	1.0 A	TA = 75°C, lead length 9.5 mm
Forward Voltage (VF)	1.1 V max.	IF = 1.0 A
Non-Repetitive Surge Current	30 A	8.3 ms single half-sine wave, JEDEC method
Reverse Leakage Current	5 μA max.	Rated DC blocking voltage, TA = 25°C
Reverse Leakage Current	50 μA max.	Rated DC blocking voltage, TA = 100°C
Junction Capacitance	15 pF typ.	1 MHz, reverse voltage 4 V
Junction / Storage Temperature	-65°C to +150°C	TJ, TSTG
Package	DO-41



Product Features

● 1000 V repetitive peak reverse voltage
● 1.0 A average forward current rating under the specified conditions
● DO-41 axial-lead package
● Cathode identified by the band marking
● 30 A non-repetitive surge capability under the specified condition



Typical Applications

● General-purpose rectification
● General electronic rectification circuits



Replacement & Second-Source Evaluation

For replacement or second-source evaluation, compare the reverse-voltage rating, forward-current rating, forward voltage, surge capability, package dimensions and polarity with the existing device.



Engineering Notes

● The rated conditions are based on single-phase half-wave, 60 Hz operation with resistive or inductive loads.
● For capacitive-load applications, the source specification requires 20% current derating.



Ordering Information

● Part Number: 1N4007
● Package: DO-41
● Marking: 1N4007
