Ultra Soft Recovery Rectifier
Ultra Soft Recovery Rectifier
Ultra Soft Recovery Rectifiers are engineered for power circuits requiring controlled and smooth reverse-recovery behavior.
A softer recovery waveform can help reduce abrupt current transitions and, in suitable circuit designs, contribute to lower voltage overshoot, ringing, switching stress and EMI. This makes the series particularly suitable for applications where both switching efficiency and waveform quality are important.
Ultra Soft Recovery Rectifier
Filter 162 products by Package, VRRM, IF, Configuration, IFSM_Max, VF_Max, Rated IF, Status, IR@125°C(uA), Tj, Trr_Max and IR@25°C(uA).
Fast Search
- Package
- VRRM(V)
- IF(A)
- VF_Max(V)
| Product Name | Package | VRRM(V) | IF(A) | Configuration | IFSM_Max(A) | VF_Max(V) | Rated IF(A) | Status | IR@125°C(uA) | Tj(°C) | Trr_Max(ns) | IR@25°C(uA) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| | VRRM(V) | IF(A) | | IFSM_Max(A) | VF_Max(V) | Rated IF(A) | | IR@125°C(uA) | Tj(°C) | Trr_Max(ns) | IR@25°C(uA) | |
| TO-247AC | 600 | 100 | Single Positive | 800 | 1.85 | 50 | Active | 300 | -55℃~+175℃ | 85 | 30 | |
| ITO-220AC | 600 | 10 | Single Positive | 100 | 2.3 | 5 | Active | 300 | -55℃~+175℃ | 25 | 30 | |
| TO-220AC | 1,200 | 15 | Single Positive | 200 | 2.1 | 15 | Active | 13 | -55℃~+175℃ | 60 | 10 | |
| ITO-220AC | 600 | 15 | Single Positive | 150 | 1.6 | 7.5 | Active | 300 | -55℃~+175℃ | 35 | 30 | |
| TO-220AC | 1,200 | 15 | Single Positive | 150 | 3.2 | 7.5 | Active | 500 | -55℃~+175℃ | 35 | 50 | |
| TO-247AC | 300 | 20 | Single Positive | 300 | 1.1 | 10 | Active | 300 | -55℃~+175℃ | 35 | 30 | |
| TO-252 | 400 | 20 | Single Positive | 180 | 1.35 | 10 | Active | 500 | -55℃~+175℃ | 35 | 50 | |
| ITO-220AC | 400 | 20 | Single Positive | 180 | 1.35 | 10 | Active | 500 | -55℃~+175℃ | 35 | 50 | |
| ITO-220AC | 600 | 20 | Single Positive | 180 | 1.6 | 10 | Active | 300 | -55℃~+175℃ | 35 | 30 | |
| TO-247AC | 600 | 20 | Single Positive | 180 | 1.6 | 10 | Active | 300 | -55℃~+175℃ | 35 | 30 | |
| TO-220AC | 1,200 | 30 | Single Positive | 300 | 1.18 | 15 | Active | 300 | -55℃~+175℃ | 35 | 30 | |
| TO-247AC | 1,200 | 30 | Single Positive | 250 | 3.2 | 30 | Active | 500 | -55℃~+175℃ | 70 | 10 |
Jump to
Show
per page
162
results

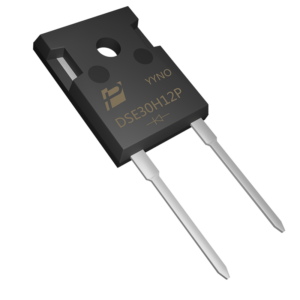

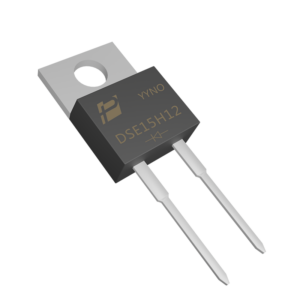

Featured Ultra Soft Recovery Rectifiers
COMMON INQUIRIES
ULTRA SOFT RECOVERY RECTIFIERS FAQ
Power Semiconductor Manufacturing Equipment
Manufacturing Capability
Professional Power Semiconductor Manufacturing Capability
Founded in 2009, POWERSi has focused on power semiconductors for more than a decade. We integrate product R&D, packaging and testing, sales, and technical support into one service system. With a manufacturing area exceeding 10,000 square meters, ISO9001:2015 certification, and ERP and MES management platforms, we strengthen production coordination, process management, and quality control.
POWERSi supplies rectifier bridges, rectifier diodes, Schottky diodes, fast-recovery rectifiers, thyristors, MOSFETs, and SiC devices for industrial, energy, and electronics-manufacturing customers. Supported by professional manufacturing capabilities and responsive technical support, we help customers move efficiently from product selection to sample evaluation and application matching.
